X0X-RMX for the FM-1

Groovebox firmware for the M-VAVE FM-1. A 909, an 808, two 303s with the TB-3PO line generator, and a breakbeat player, all running at once, with patterns, a song mode and recorded knob moves. This independent fork adds Orb-inspired Remix for 909, 808, 303A and 303B, Grids MAP/EUCLID drum generation with NEW/MUTATE, FILL, OFFSET, CHAOS and Undo, extended TB-3PO, a 303 Morph waveform, and additional color schemes and UI improvements.

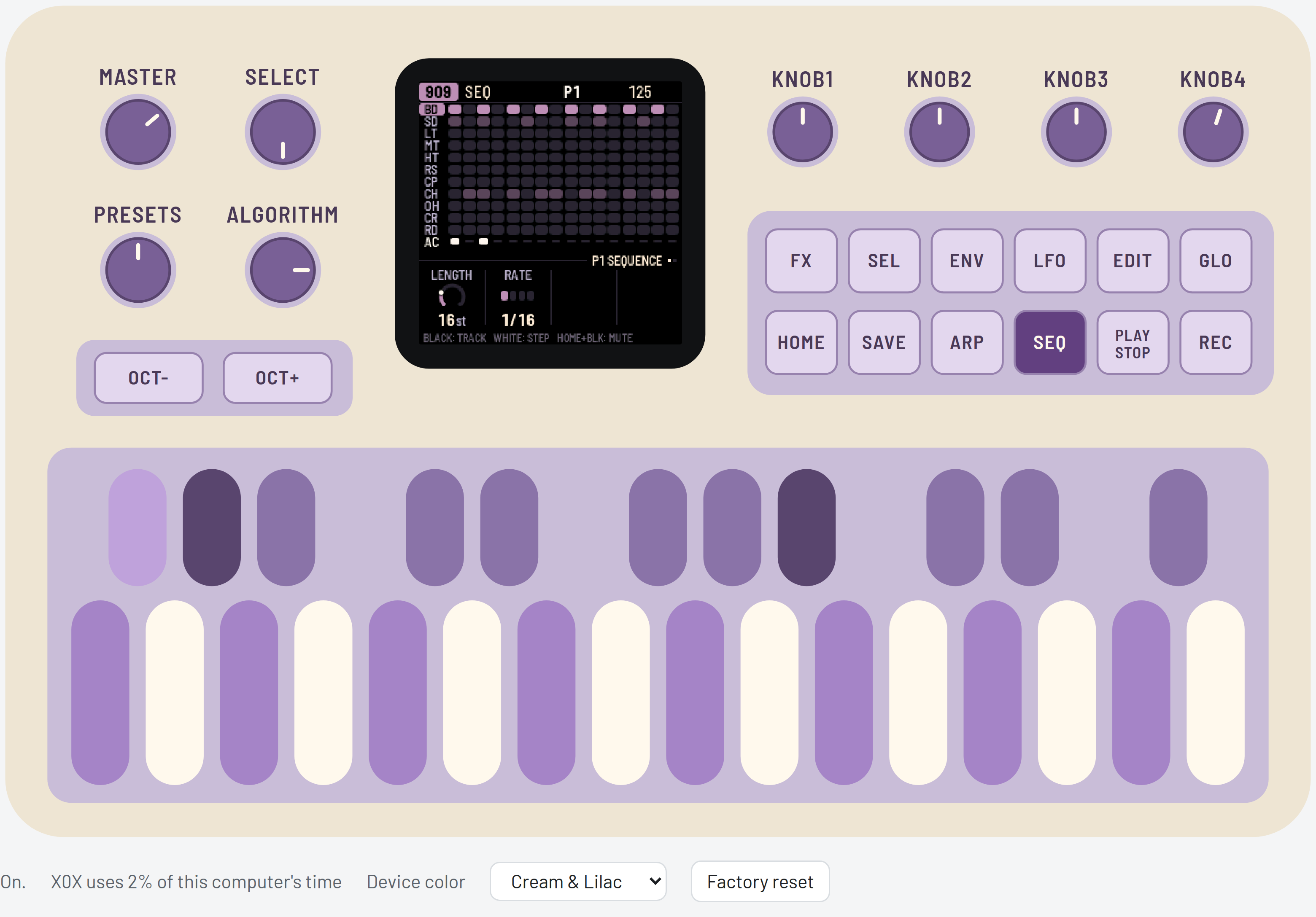

X0X-RMX browser emulator in Cream & Lilac, showing a 909 pattern and the Device color selector — The default Cream & Lilac exterior, shown with the WHITE LILAC LCD scheme. Play it with mouse, touch or keyboard.

X0X-RMX 1.0.0 Stable, successfully tested on a real M-VAVE FM-1. Hardware update, pattern/sample retention, startup patterns, chain playback, a twelve-minute musical run and USB audio with iPad/AudioShare were confirmed successful.

X0X-RMX musical demonstration

84 seconds of Remix, Grids, TB-3PO and Morph with real stereo browser-emulator audio. Earlier browser-emulator recording, not physical FM-1 footage. The outro was updated to confirm successful v1.0.0 real-device validation. Open the video (MP4, 6.38 MB).

Inside X0X-RMX

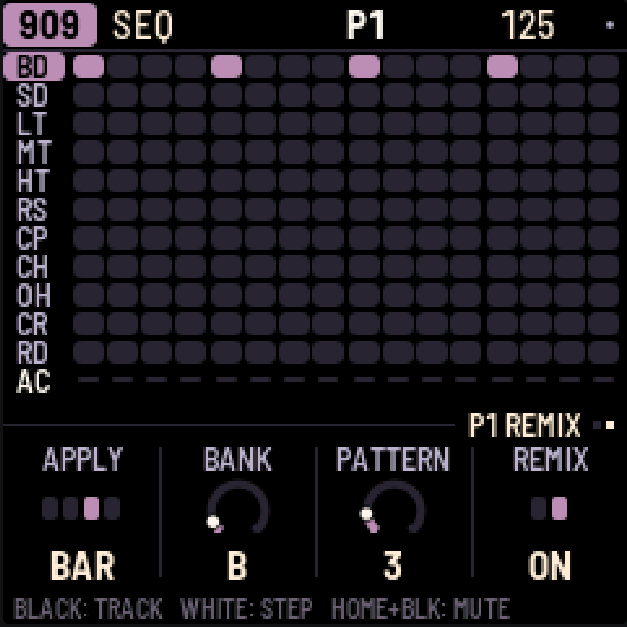

909 Remix with Bank B, Pattern 3, Remix ON and APPLY BAR — **Remix.** Reorder playback while keeping the stored steps.

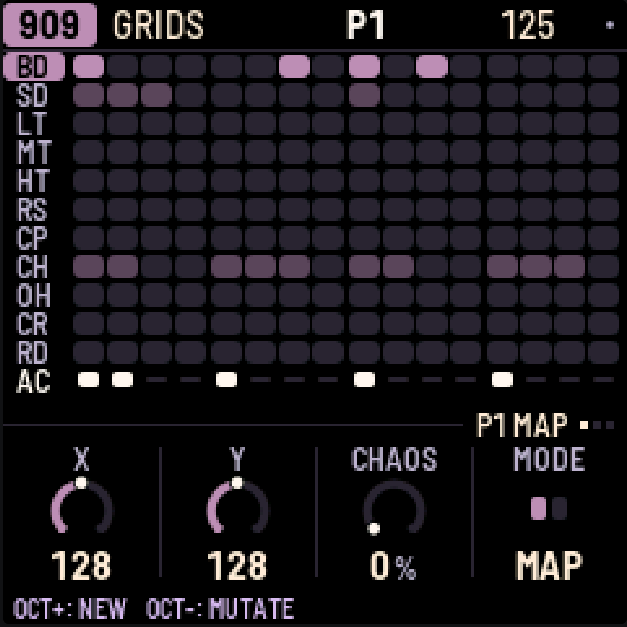

909 Grids MAP page with X, Y, CHAOS and MODE controls — **Grids.** Generate and mutate kick, snare and closed-hat rhythms.

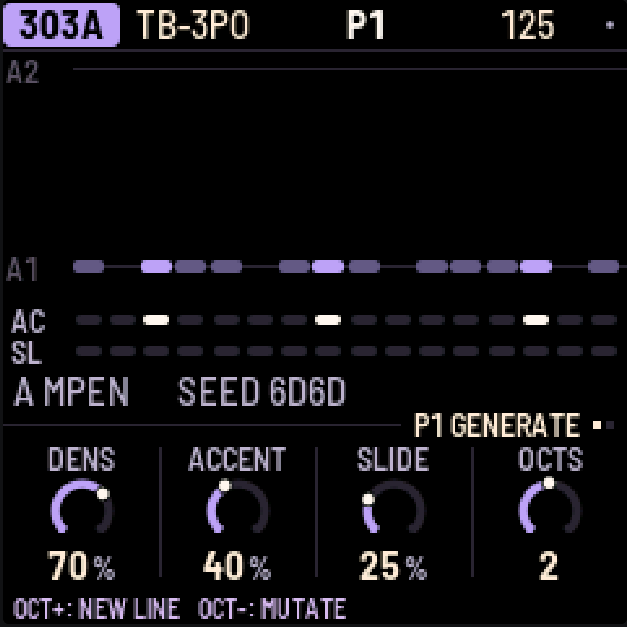

303A TB-3PO GENERATE page with density, accent, slide and octave controls — **TB-3PO.** Generate bass lines with 22 scales and phrasing controls.

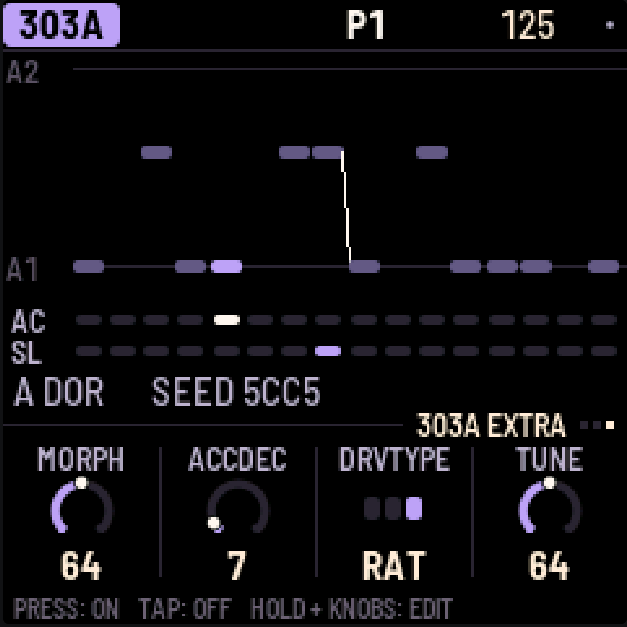

303A EXTRA page with MORPH 64, ACCDEC, DRVTYPE and TUNE — **Morph.** Shape the experimental waveform on the EXTRA page. One Morph voice at a time.

Four emulator device colors

Choose Cream & Lilac (default), Classic Dark, Sunset Orange or Pink Lilac with the browser's Device color selector. Switching is immediate and the visual preference is remembered separately from your project. GLO → SCHEME controls LCD colors independently.

The same 909 pattern with matching device and LCD colors: Cream & Lilac / WHITE LILAC, Classic Dark / DEFAULT, Sunset Orange / SUNSET ORANGE and Pink Lilac / PINK LILAC — Four browser finishes with coordinated LCD schemes, selected separately in GLO → SCHEME. Visual interpretations, not color-matched hardware photographs. Open the image for a closer look.

Original X0X – upstream demonstration

Original X0X demonstration by Charles Vestal; it does not demonstrate the fork additions.

Based on Charles Vestal's original X0X and Felucca by Leo Kuroshita and contributors, Hügelton Instruments. Grids by Emilie Gillet / Mutable Instruments; MAP arithmetic cross-checked against DEADACTIVE's Hortator. See the complete credits and licensing notices.

An independent fork without implied endorsement by the original author. M-VAVE, FM-1, TR-808, TR-909 and TB-303 are trademarks of their owners; no affiliation or endorsement.
